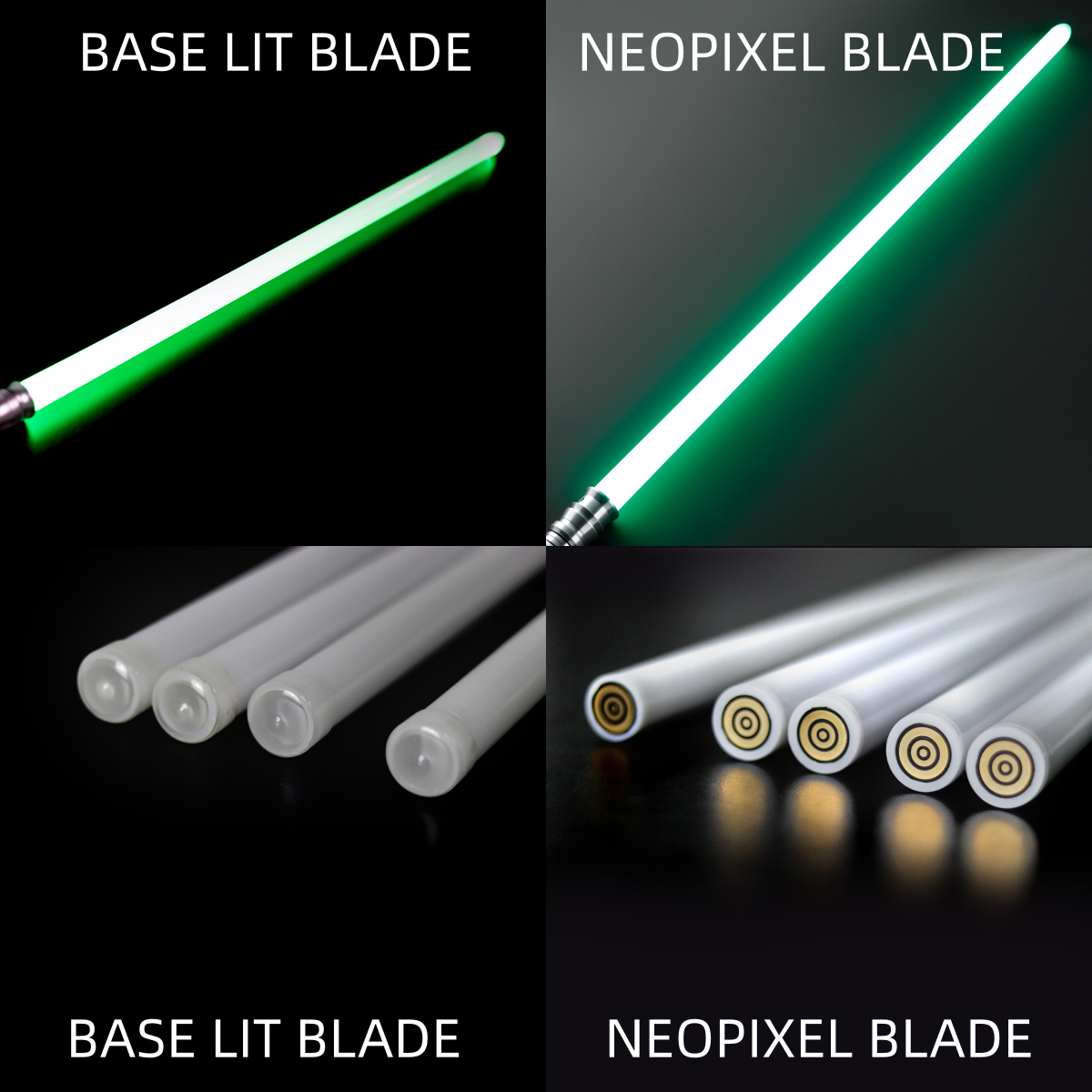

IIlumination Technologies:In-Hilt LED/Base lit/RGB lightsaber vs.Neopixel lightsaber

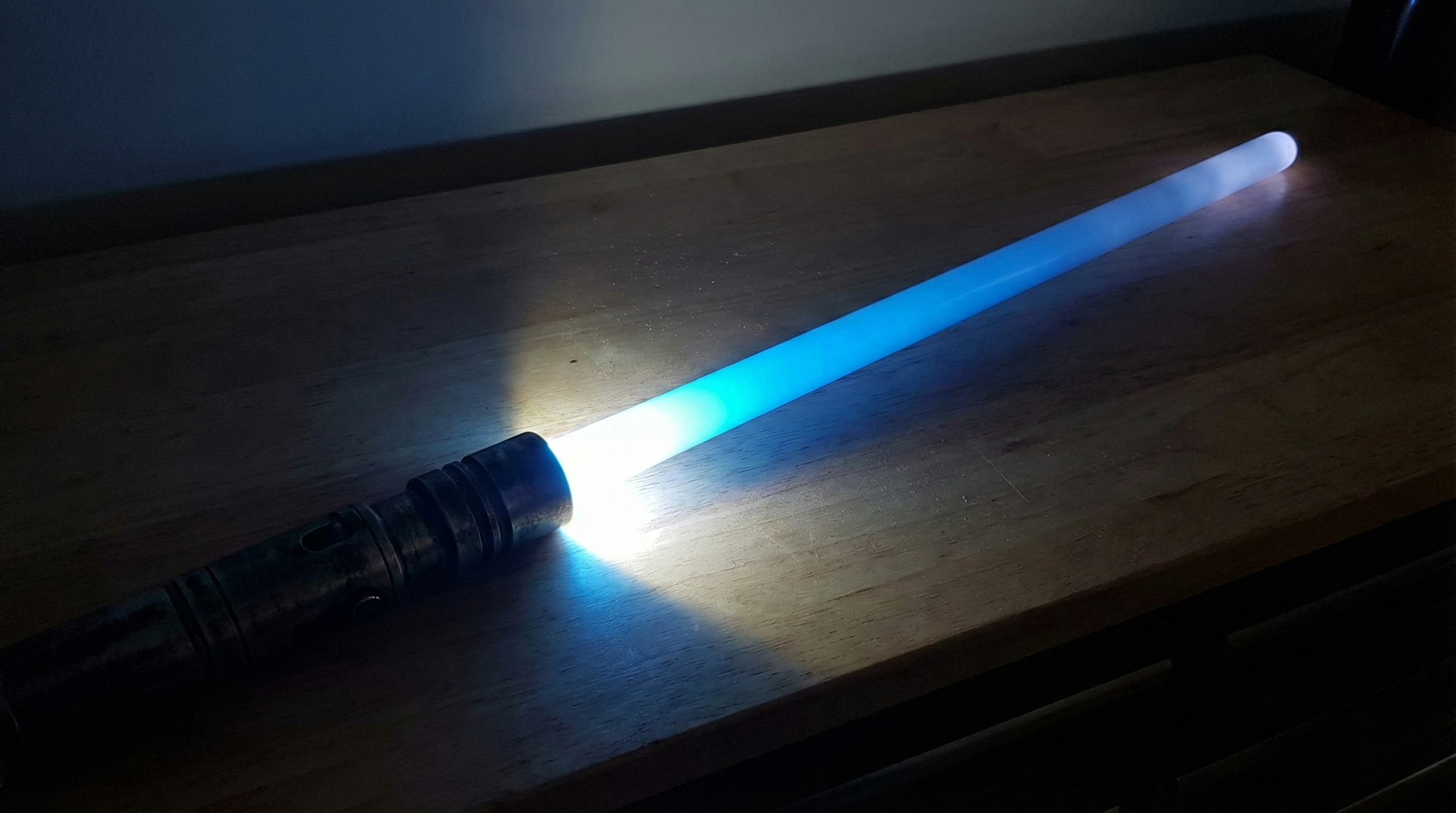

There are two dominant architectures for lighting a replica lightsaber:"Base-lit"(In-Hilt LED) and "Neopixel"(Pixel Blade).The Base-lit configuration operates like a high-powered flashlight;a powerful LED(often 3W 9W 12W or higher,typically tri star emitters)is mounted inside the hilt,shining light up into a hollow polycarbonate tube lined with diffusion film. This method is durable and cost-effective but suffers from diminishing brightness towards the tip of the blade and lacks the ability to produce scrolling extension/retraction effects.The diffusion film is critical here;without it,the blade appears as a hollow tube with a light at the bottom.

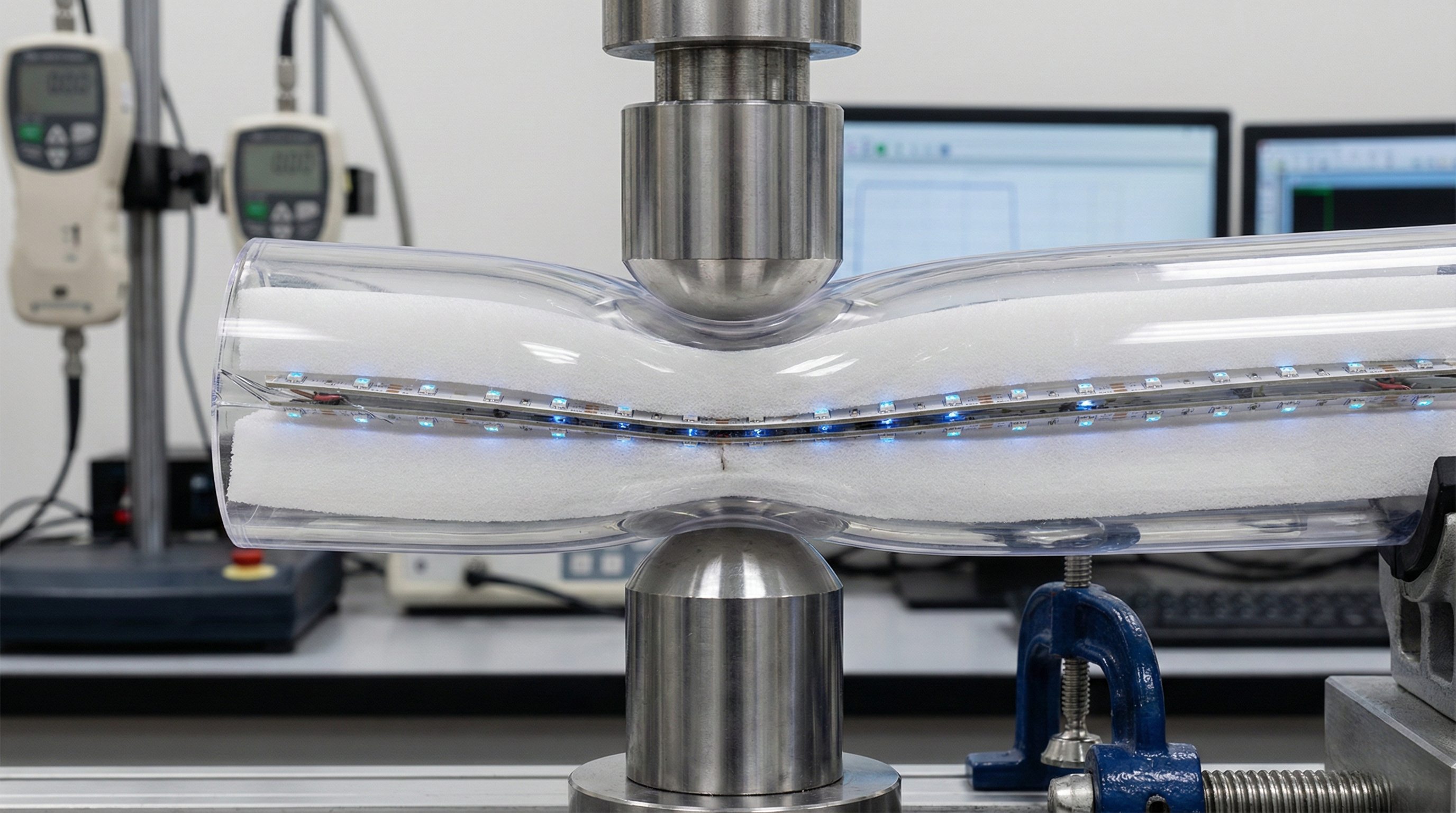

Conversely, "Neopixel" technology represents the premium industry standard for replica illumination, positioning high-density strips of individually addressable RGB LEDs (such as WS2812B, SK6812, or newer high-density variants) back-to-back directly within the blade itself to allow for granular control over every "pixel" along its length. This architecture enables advanced visual effects impossible with base-lit systems, including scrolling ignitions, localized "blaster block" flashes, and dynamic "tip drag" visualizations where the tip glows intensely to simulate melting surfaces. While integrating electronics into the striking surface introduces perceived trade-offs regarding cost and fragility compared to hollow tubes, the "Protected Core" reality contradicts the common belief that individual electronic components are the primary point of failure; encased within a virtually indestructible thick-walled Polycarbonate tube and cushioned by a high-density foam diffusion layer, the LEDs themselves are extremely well-protected against impact shock. Instead, the critical failure mode in inferior designs is "inertial separation" at the blade's base connection interface during high-velocity movements, a significant structural weakness addressed by Damien Tech, who through iterative destruction testing, perfected the definitive solution: a precision-engineered Internal Base Chassis that functions as a heavy-duty structural strain-relief clamp.
