System II:Lightsaber Core Power System

The Power System is the "Heart" of the lightsaber. It must deliver high-current bursts for Neopixel blades while ensuring absolute safety and stability during combat impacts.

1. Battery (Energy Source)

Standard: 18650 or 21700 High-Drain Li-ion Battery (or Custom Li-Po Packs).

Professional Standard: Professional lightsaber companies MUST use batteries with an integrated Protection Circuit Board (PCB/BMS).

The Critical Safety Hazard: Protected vs. Unprotected

Unprotected Batteries (The Danger):

Explosion Risk: If the charger fails or a short circuit occurs, the battery can overheat, catch fire, or explode.

Over-Discharge Death: If the user leaves the saber on until it dies, the voltage drops below the critical threshold (2.5V), permanently killing the battery. The user will think the saber is broken.

Protected Batteries (The Solution):

Safety Lock: The built-in PCB automatically cuts off power during short circuits, over-charging, or over-discharging, ensuring 100% safety and longevity.

2. Charging Port (Interface)

Evolution: DC Barrel Jack vs. USB-C.

DC Port: An obsolete relic. Slow charging, bulky, and single-function.

USB-C: The modern standard. Universal, supports fast charging protocols.

Integration (Design Logic):

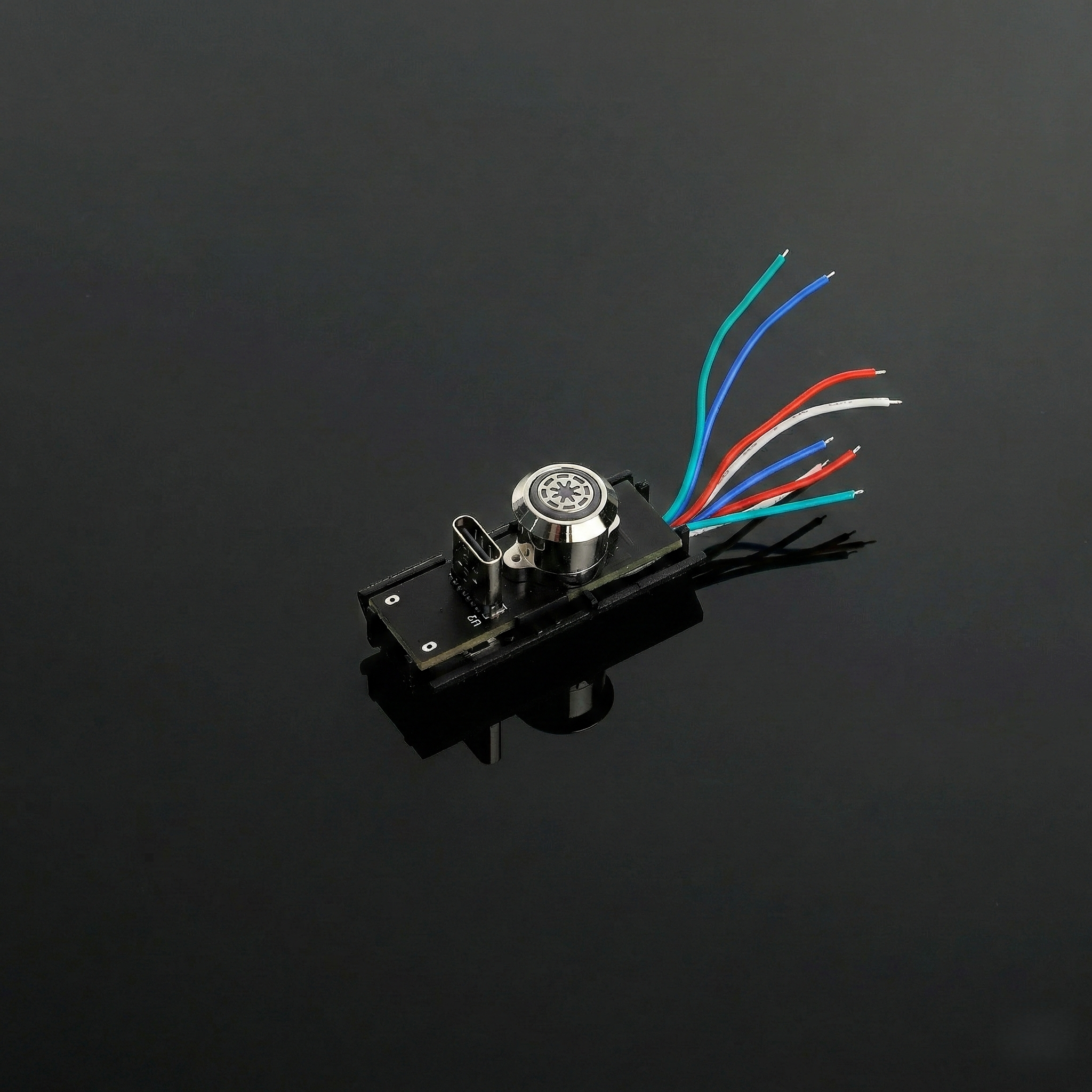

In modern integrated chassis, the Tactile Switch and Charging Port are soldered onto the same rigid PCB.

Data Capability: Premium ports support Data Transfer, allowing users to access the SD card or config files directly via the charging cable.

3. Kill Switch (Master Power Cut-off)

Function: A physical toggle switch to completely cut battery power.

Necessity vs. Liability :

For Dumb Boards: For soundboards without a Battery Management System, a Kill Switch is mandatory to prevent the standby current from draining the battery to death.

The After-Sales Nightmare: However, Kill Switches cause massive after-sales issues. Beginners (Newbies) have no concept of a "Master Switch." They buy the toy, try to turn it on, and it doesn't light up because the Kill Switch is off. They assume it's broken and return it.

Modern Solution: Smart boards use "Deep Sleep Mode" with negligible power drain, eliminating the need for a physical Kill Switch and solving this user experience trap.

4. Battery Contacts (Structural Stability)

The Industry Pain Point: Inertial Disconnection (Power Cut-off).

Physics: During a heavy duel, when the saber hits a blade, the hilt stops, but the battery (due to inertia) wants to keep moving. It compresses the spring, breaking contact for a millisecond. The saber reboots.

Solution A: Structural Constraint (The "Rib" Design)

The problem isn't just the spring; it's the freedom of movement. We must engineer Retaining Ribs (Bone Positions) into the core chassis itself.

Mechanism: The plastic framework grips the battery tightly from the sides, preventing longitudinal displacement. The spring's job is just to maintain contact, not to hold the weight.

Trade-off: This makes the battery harder to remove, but guarantees stability.

Solution B: Material Science (High-Memory Elasticity)

Even with ribs, plastic deforms over time. If the spring metal fatigues (loses bounciness), contact fails.

Material: We must use Beryllium Copper or high-grade Phosphor Bronze with gold plating. These materials have excellent "Elastic Memory" and high conductivity to prevent heating under high current.

Solution C: The "Old Mobile Phone" Connector (Precision Leaf Connectors)

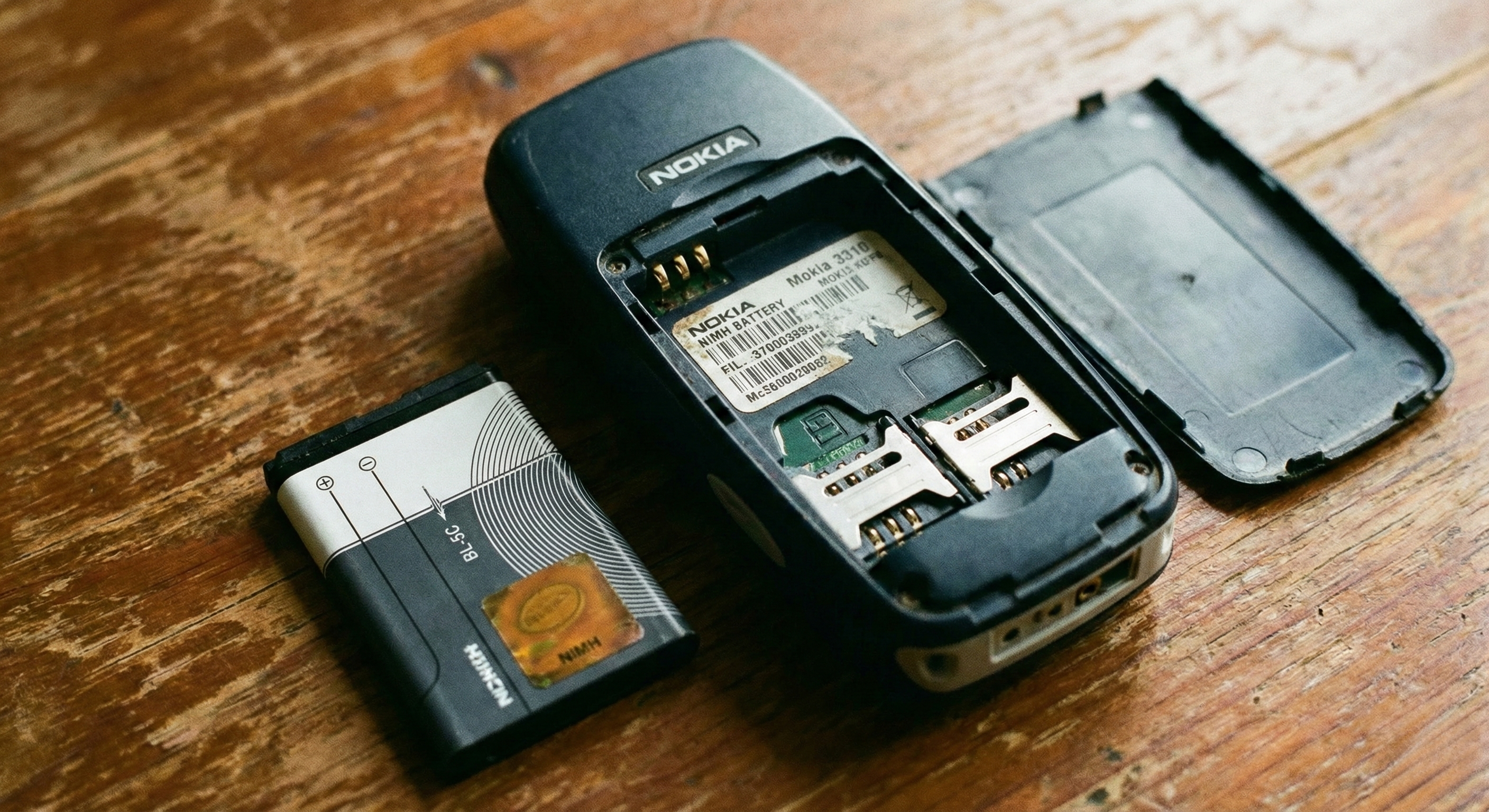

Concept: Inspired by removable batteries in legacy mobile phones (like Nokia).

What is it called? Precision Leaf Battery Connector or Knife-Switch Terminal.

Application: Currently used in high-end Carbon Fiber lightsabers.

Advantage: These connectors are small, exert high lateral pressure, and "bite" onto the battery terminals. They allow for battery removal/swapping/charging while ensuring absolutely zero disconnection during combat.
