The Engineering of a Real-Life "Light Whip": The Hardcore Challenge from Sci-Fi to Reality

We are all familiar with Light Whip users in Star Wars (such as Vernestra Rwoh in The Acolyte or Lumiya in the Legends universe). On screen, energy whips are long, lethal, and retractable. However, in the realm of real-world physics, creating a tangible light whip that glows, moves fluidly, and withstands impact presents engineering challenges far exceeding those of a standard lightsaber.

The Electronic Core: Why Standard FPC Strips Fail

To make the whip glow, LEDs must be embedded. The traditional low-cost solution is side-glow fiber optics, but the brightness is lackluster. For high-brightness, pixel-level color changing, LED beads are a must. However, standard Flexible Printed Circuit (FPC) strips have a fatal weakness: they are designed for unidirectional bending. Once subjected to the 360-degree spiraling or violent whipping characteristic of a light whip, the copper traces inside the FPC will snap due to metal fatigue or excessive tensile stress.

The Solution: Addressable Wire LEDs To withstand 360-degree whipping, we replace the fragile FPC with Addressable Wire LEDs (Seed Pixels). In this technology, LED chips are encapsulated directly in resin and connected via multi-strand flexible wires. They possess rope-like flexibility, offering high resistance to torsion and tension, perfectly solving the "snap-on-swing" physical problem.

Optical Optimization: Eliminating the "Corn Effect"

Due to the physical characteristics of wire LEDs, the spacing between beads is usually wide. If only one strand is inserted, the lit whip will show obvious bright and dark spots, commonly known as the "Corn Effect," which looks terrible.

Dual-Strand Staggering To solve this, we use two parallel strands of addressable wire LEDs with a physical staggered arrangement. By filling the gaps between beads, we double the density of light points, allowing the entire whip to display a continuous, fluid ribbon of light.

Structural Achilles' Heel: Anti-Rotation Design for blade side PCB chassis

The light whip is not just a tube; it must connect to the hilt for power via a connector. There is a huge risk here: when the whip spins violently in the air, if the internal PCB is not completely fixed relative to the whip body, relative rotation will occur. A displacement of even a few degrees creates enough shear force to instantly twist and snap the wires connecting the LEDs.

Rigid Fixation Therefore, the Pogo Pin PCB frame must be rigidly interlocked with the whip body (silicone tube and connector), strictly prohibiting any rotation. Only when the "whip and board move as one" can circuit safety be guaranteed.

Material Selection: The Balancing Art of High-Purity Silicone

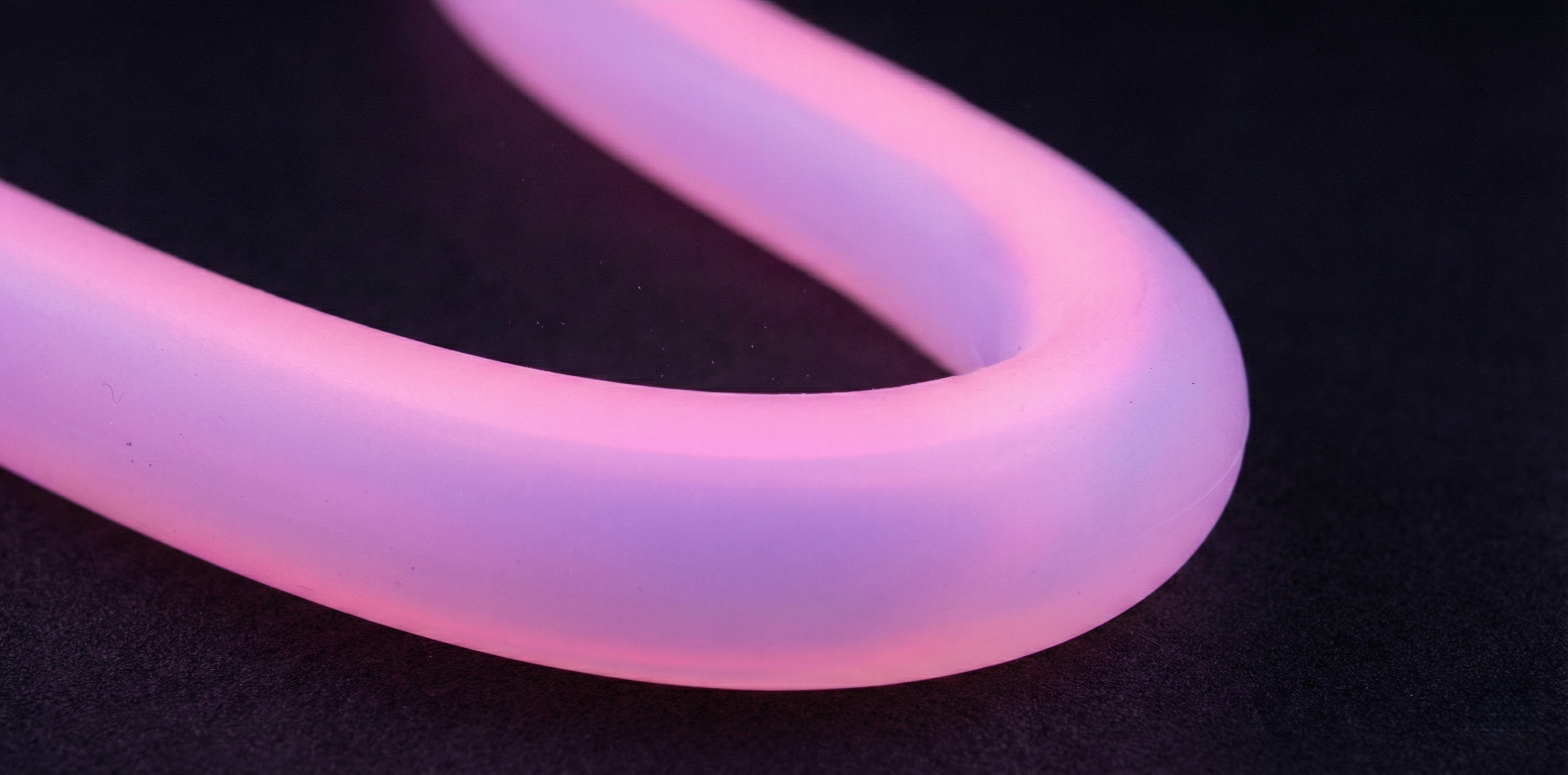

The outer tube material dictates the tactile feel and lighting quality. Ordinary clear tubes are not only glaringly transparent but also prone to aging and hardening. Currently, the optimal material is High-Purity White Silicone.

Diffusion and Durability: Milky white silicone acts as a natural diffuser, transforming the harsh point-source light of LEDs into a soft, neon-like texture. Meanwhile, silicone's excellent tear resistance and elasticity ensure the whip does not crack or deform under repeated whipping.

Market Status and Outlook

Given the complexity of the craftsmanship described above, very few can truly master this technology. Damien Tech is currently the only brand in the market selling this type of high-end light whip. It is worth noting that their first-generation product was positioned as a "Display Grade Light Whip" (primarily for Cosplay and light flowing) and has been discontinued.

Currently, Damien Tech is going all out to overcome technical barriers and develop the Second Generation "Combat Grade" Light Whip. The new version aims to fundamentally solve structural strength issues, enabling it to truly withstand high-intensity whipping and competitive demands.
